Rear Loading mailboxes, interior use, horizontal.

Model s-105 series modular style boxes eliminates guesstimating your needs, the mix and match system that grows with your business.

Applications

Large Appartment buildings, Universities, Colleges, Hospitals, Transport Companies, Mail distributions centres, Post offices, Governement establishments, Prisons and much more.

Standard Features

• Doors : 1/4" (6) Extruded aluminum with bevelled edges.
• Frames : 3/16" (5) Solid aluminum plate.
• Bins : 22 ga. (0,5) steel spot welded.
• Locks : 5 pin cam type with 3 keys (1000 changes to avoid duplication).
• Hinge : Steel continues piano type.
• Finish : Doors & frames brushed horizontally and clear anodized.
• Identification : Door with window, gravoply plastic engraved black on grey.
• Rear identification : Label holder strip welded to the back of the bin.
• Safety : Doors C, D & E have cable stays attached to door & bin, to limit door opening.
• Assembly : Supplied with bolts & nuts for easy assemble on site.

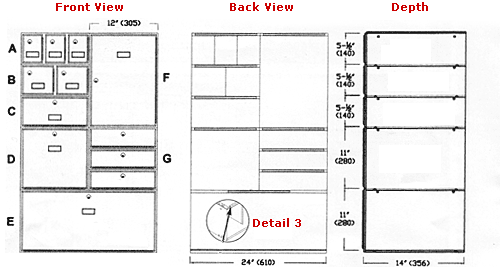

• Available : In 7 different sizes, see shop drawing.
• Doors : A, B, F open left to right, Doors C, D, E & G open downward.

Optional Features

• Identification engraved on door or
  transparent Plexiglas reverse engraving.
• Couloured anodized finishes
  i.e.: Gold, Duronatic, Green,Red or Blue.
• Master keyed.
• Hinged lockable rear door, or lift off panels.
• Integrated frame, trim.
• Available with combination or push button locks.

Detail 1
Vertical stacking by simple overlap, section diagrams show the easy self stacking feature of Nova-Fast lock type letter boxes by bolting them together.

Detail 2
Side holes are bolting the colums together.

Detail 3
Shows rear label holder.
