Front Loading

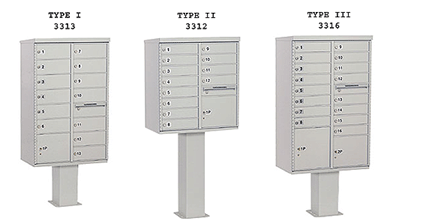

Made entirely of aluminum and stainless steel, pedestal 3300 series cluster box units are accessed from the front through an easy opening master door gate assembly with a hold open device. Models #3313, #3312 and #3316 have mail compartment doors numbered 1-13, 1-12 and 1-16, respectively. Each door includes a five (5) pin cylinder cam lock with a dust/rain shield and three (3) keys. One additional compartment in each unit is identified as an "Outgoing Mail"’ receptacle and includes a weather protection flap and a 10-3/4" W x 1" H (27.2cm x 2.5cm) mail slot. Models #3313 and #3312 include one(1) 12" W x 10" H (30.4cm x 25.3cm) parcel locker and model #3316 includes two (2) parcel lockers - (1) 12" W x 10" H (30.4cm x 25.3cm) and (1) 12" W x 13" H (30.4cm x 33cm).

Parcel lockers offer tenants a convenient way to receive packages on site and are fit a two (2) key security system. When the Post Service delivers a parcel to the locker, a parcel locker key is placed in the recipient's mailbox. Once the recipient opens the parcel locker, the key is automatically retained in the lock until it is removed with a control key.

Type A Door sizes - 12-3/4" W x 3" H (32.3cm x 7.5cm)
Type B Door sizes - 12-3/4" W x 4-3/4" H (32.3cm x 12cm).

CLUSTER BOX UNITS
Model	Description	Unit Size	Weight
3312	12 Doors -Type II	28-1/2" W X 31-3/4" H X 17-3/4" D (72.4cm X 80.5cm X 45cm)	95 lbs
3313	13 Doors -Type I	28-1/2" W X 45-3/4" H X 17-3/4" D (72.4cm X 116.1cm X 45cm)	110 lbs
3316	16 Doors -Type III	28-1/2"W X 45-3/4" H X 17-3/4" D (72.4cm X 116.1cm X 45cm)	115 lbs
3385	Pedestal for #3313, #3316	17"(43.1cm) H base 12" (30.5cm) W X 6"(15.1cm) D	20 lbs
3395	Pedestal for #3312	31" (78.7cm) H base 12" (30.5cm) W X 6" (15.1cm) D	30 lbs
3390	Lock - standard replacement for CBU door - with (3) keys
3398	Additional key - per lock when ordering mailboxes
3399	Key Blanks - for standard CBU locks - box of (50)
